OBS overlays

Drive OBS (or other) browser sources from the local API so stream overlays stay in sync with playback.

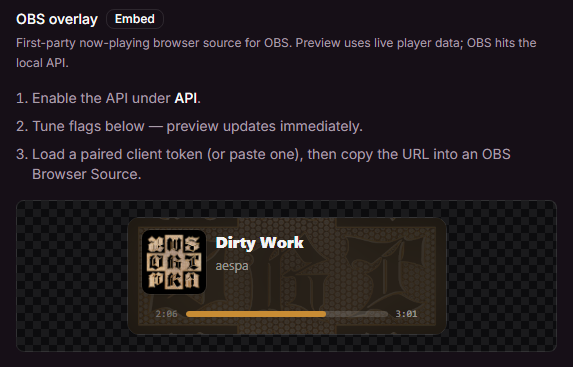

OBS overlay settings — live preview and flags

First-party embed

Enable the API under Settings → API & Integrations → API.
Open Settings → API & Integrations → OBS.
Tune layout + flags in the live preview, then Copy OBS URL.
In OBS: Add → Browser Source → paste the URL (suggested size ~480×140; smaller for badge/ticker; full scene for fullscreen).

Default URL:

http://127.0.0.1:13091/embed/now-playing

When authentication is on, append a paired client token:

http://127.0.0.1:13091/embed/now-playing?token=<token>

(The settings page can load a token from a paired client into the URL.)

`layout`	Description
`default`	Full card — art, title, artist, progress (default)
`compact`	Smaller card, tighter spacing
`text`	Title + artist only (no art/progress)
`badge`	Compact horizontal card (same 12px radius as default/ticker)
`fullscreen`	Edge-to-edge art with overlay text — size Browser Source to scene
`stack`	Vertical poster (art on top) — good for side panels
`ticker`	Thin scrolling strip for top/bottom of stream

Example: ?layout=badge, ?layout=fullscreen, ?layout=ticker.

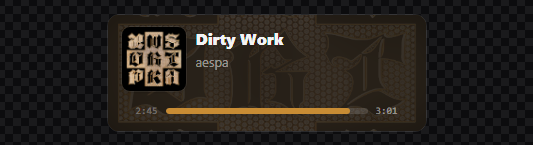

Horizontal card — art, title, artist, progress.

Default layout

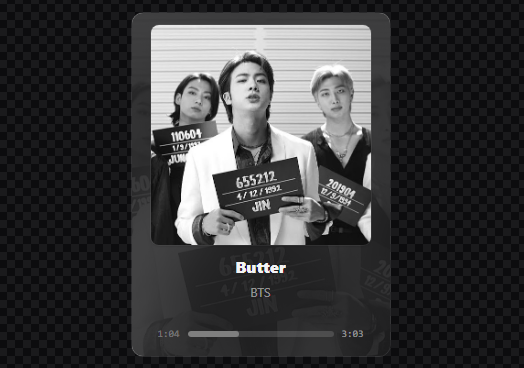

Vertical poster — large art on top, centered metadata, progress.

Stack layout

Title + artist only — transparent background for minimal lower-thirds.

Text layout

Param	Default	Description
`layout`	`default`	Widget layout (see above)
`art`	on	Album art
`title`	on	Track title
`artist`	on	Artist
`progress`	on	Progress bar + times
`transparent`	on	Transparent page background (OBS)
`scale`	`1`	CSS scale (`0.25`–`4`)
`token`	—	API token when auth is required

Set a flag off with 0 / false / off (example: ?art=0&progress=0).

Confirm GET /track and GET /track/state before wiring overlays — see Routes.
First-party embeds load art from GET /track/thumbnail (thumb-cache), not the YouTube CDN.
WebSocket /socket pushes track:change and track:state (progress / play).
Prefer 127.0.0.1 and a token when the API is reachable beyond your machine.

You can still point browser sources at custom HTML that reads the API. Community reference: Zyphen's Now Playing.
